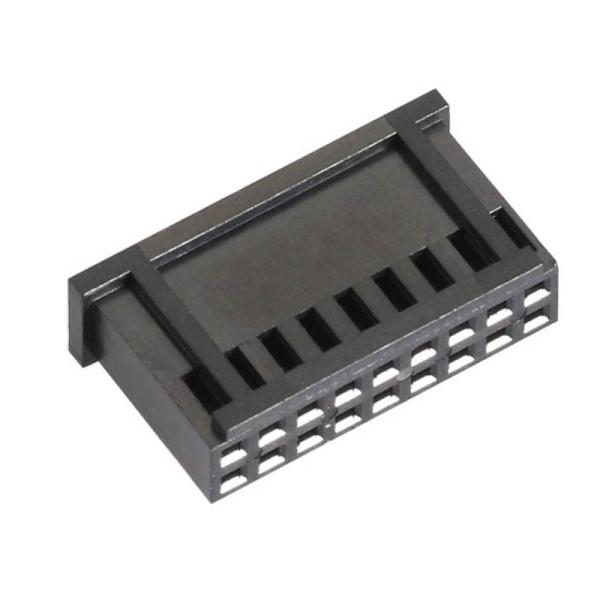

2.54mm Double Row Housing Wire To Board Connector Electrical Wire Connectors

Name: 254mm Double Row Housing Wire To Board Connector Electrical Wire Connectors
Brand: WCON
Price: 1 USD

Cheap 2.54mm Double Row Housing Wire To Board Connector Electrical Wire Connectors for sale

Brand Name : WCON

Model Number : WF2548-2HXXB01

Certification : UL/SGS/ROHS

Place of Origin : China

MOQ : 1000pcs

Price : negotiation

Payment Terms : T/T

Supply Ability : 800000PCS

Delivery Time : 15~25Day

Packaging Details : Tray

Product name : Housing Connector

product type : electrical wire connectors

Type : Female

Rated Current : 3.0AMP

Contact Resistance : 20mΩ Max

Withstand Voltage : 1000V AC/DC

Contact Now

2.54mm Double Row Housing Wire To Board Connector electrical wire connectors

Insulation Resistance	1000mΩ Min
Operation Temperature	﹣25℃ to +85℃
Pin Material	Brass
Contact Plating	Au or Sn over Ni
Insulator Material	Polyester(UL94V-0)
Standard	PA66

Item name: Wafer connector

product features: it makes the design and production process more convenient, more flexible, reduce production and maintenance costs, easy maintenance, easy to upgrade, improve the flexibility of the design

Wire To Board Connector product material: (UL94V-0) PA9T, PA6T, PA46, PA66, etc.

Wire To Board Connector scope of application: used in computer and peripheral equipment, communication products, test instruments, consumer electronics products, automotive industry, medical electronic products, the production of military and aerospace industry in which the device connecting the two active devices, current or signal transmission.

2.54mm Double Row Housing Wire To Board Connector Electrical Wire Connectors

WF2548-2HXXB01.pdf
