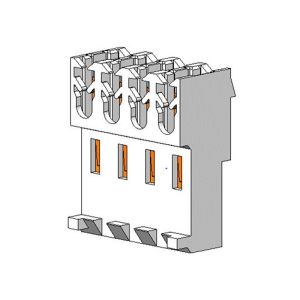

3.96mm pitch connector WAFER 4P Crimping Type T TYPE Sn Plated With Cut PA66 ROHS

Product Categories

WCON ELECTRONICS ( GUANGDONG) CO., LTD

Contact Now

Name: 396mm pitch connector WAFER 4P Crimping Type T TYPE Sn Plated With Cut PA66 ROHS
Brand: WCON
Price: 1 USD

Brand Name : WCON

Model Number : WF3964B-HIXXT01/2/3/4

Certification : SGS/ROHS

Place of Origin : China

MOQ : 1000pcs

Price : negotiation

Payment Terms : T/T

Supply Ability : 800000pcs

Delivery Time : 15~25Day

Packaging Details : bag packing

TYPE : crimping type

pitch : 3.96mm

plastic : PA66

port : hong kong

factory : dong guan

terminal : SN plated

Contact Now

3.96MM WAFER 4P crimping type T TYPE sn plated with cut PA66 ROHS.

3.96mm pitch connector WAFER 4P Crimping Type T TYPE Sn Plated With Cut PA66 ROHS

SPECIFCATIONS
Current Rating : 7.0AMP
Voltage Rating : 600V AC
Contact Resistance : 10milliohm Max
Withstand Voltage : 2200V AC/DC
Insulation Resistance :5000Megohm Min
Operation Temperature : -25℃ to +85℃
MATERIAL/FINISH
Housing Material : Nylon66 UL94V-0/2
Contact Material : Brass
Contact plating: Sn over Ni

3.96mm pitch connector WAFER 4P Crimping Type T TYPE Sn Plated With Cut PA66 ROHS
